Name: Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions
Brand: Shanghai Qinuo Industry Co., Ltd.
SKU: أختام Weco Hammerless Union Seals
Price: 0.10 USD
Availability: InStock

منزل المنتجات مطرقة الاتحاد الختم

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions

تفاصيل المنتج:

مكان المنشأ:	شنغهاي ، الصين
اسم العلامة التجارية:	Royal Way
إصدار الشهادات:	ISO9001: 1005
رقم الموديل:	أختام Weco Hammerless Union Seals

شروط الدفع والشحن:

الحد الأدنى لكمية:	500pcs
الأسعار:	0.1-2usd/pcs
تفاصيل التغليف:	تعبئة كرتونية 404040 سم
وقت التسليم:	5-20 أيام
شروط الدفع:	T/T ، Western Union ، L/C ، PayPal
القدرة على العرض:	50,000 قطعة في الأسبوع

اتصل

مفصلة وصف المنتج

مادة::	بونا، FKM، HNBR، PTFE، FFKM	مقاس:	1 "1.5" 2 "3" 4 "6" 7 "
موك:	100pcs	الأنواع:	مطاط أو مطاط + نحاس احتياطي
صلابة:	80-90 شور أ	ميزة:	مقاومة للزيت، مقاومة للضغط العالي
لون:	لون أسود أو مخصص	ماركة:	الطريق الملكي
نطاق درجة الحرارة:	-200°C إلى 250°C	ضغط:	15000psi
استخدام:	إنشاء خطوط التدفق، منع التسرب
إبراز:	FKM rubber seal for Weco unions,Chemical-resistant hammer union seal,Fig 602 anti-extrusion ring seal , Chemical-resistant hammer union seal , Fig 602 anti-extrusion ring seal

What we supply:

Engineered for exceptional performance in high-pressure environments, Qinuo hammer union seals ensure leak-free operation across a wide range of oil and gas applications. The seals play a critical role in connecting the hammer union’s male and female components, maintaining a secure barrier against crude oil, gas, drilling mud, and hydraulic fluids. Every seal is molded with precision to guarantee dimensional accuracy and optimal compression when installed.

Our hammer union seals feature a reinforced lip structure that prevents loosening and ensures proper alignment even when exposed to vibration, torque, or temperature fluctuations. These seals are available in several high-grade materials, including NBR for everyday petroleum service, HNBR for elevated temperature systems, and FKM for aggressive chemicals and demanding sour gas operations.

Qinuo provides seals in standard sizes from 1" to 7", designed for Weco and FMC hammer unions in models Fig 602, Fig 1002, Fig 1502, and Fig 2002. Options include brass or stainless-steel anti-extrusion rings for extreme pressure situations, supporting applications up to and beyond 15,000 psi. Our hammer union seals improve safety, reduce maintenance, and extend equipment service life.

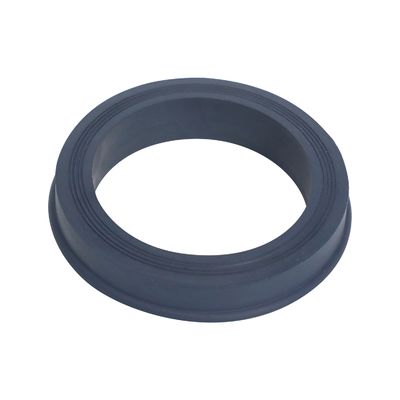

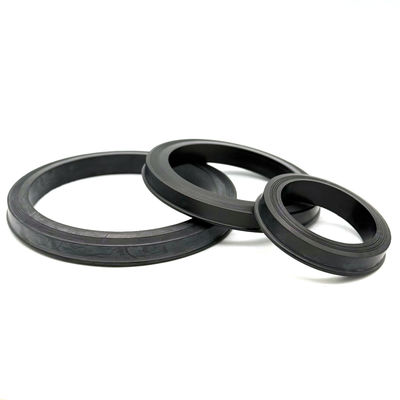

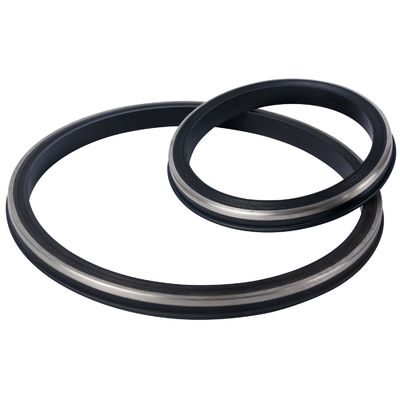

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 0

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 1

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 2

Size:	1" 1.5" 2" 3" 4" 6" 7"
Material:	Buna/FKM/HNBR/PTFE
Types:	Pure rubber/ rubber+brass back-up/rubber+304 ss back-up

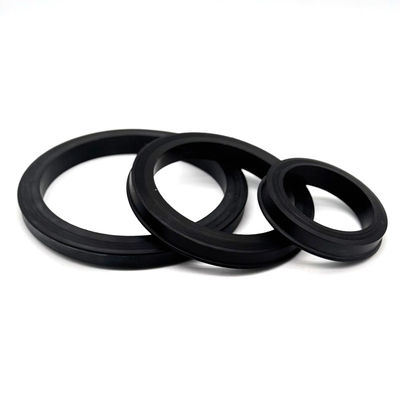

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 3

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 4

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 5

Who we are:

Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 6

What we Provide:

Rubber O rings

Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
Encapsulated rubber o rings- silicone/ FKM rubber o rings
PTFE coating rubber o rings-kinds of color rubber o rings

Hammer Union seals- 1" 1.5" 2" 3" 4" 6" 7"

Rubber hammer union seals-Buna/FKM/HNBR rubber type
Rubber w/brass or stainless steel back up types

Swab cups

V types 4" 5.5" ect.
TA type
MV type
NUF type
TUF type

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 9

Rubber seal kits- custom packing or lable is available

#10 setting tool - With burst disk
#20 setting tool - With burst disk
AP Compact Setting Tool Kit
Grease Tubes Seal Kit
3 1/2” Shorty Kits
3 - 1/8" Weight Bar Kit
#10 Baker Firing Head Kit
#20 Firing Head Kit
#20 BP3.SEC kits
#10 BP3.SEC kits
T-BRT redress kit
T-1 Set
GC Stripper Head Redress Kits

Wireline Component Parts:

1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)

2) Rubber Push Pin -black

3) Nylon Push Pin -natural

4) Retainer Nut, Steel, ZD Plated (application: retainer nut)

5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)

6) Threaded Brass Plug (application: setting tool plug )

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 10

More pictures of our products for reference:

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 11

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 12

Corner View of our factory:

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 13

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 14

Fig 602 Hammer Union Seal with 15000PSI Pressure Resistance and 80-90 Shore A Hardness for Weco Wing Unions 15

Our Service capability:

Customized services	Plastic & Rubber bonding	Mold Design
Customized extrusion	Extrusion and bonded gaskets	Mold Production
Injection Molding	Self Adhesive rubber profile	Customized Package
Sheet Cutting	Rubber Complex Intake Hose	Problem Solving
Standard Size extrusion	Reinforced rubber tubes	Assembly
Special Compound design	Rubber Solution Suggestion	Sourcing
Rubber& Metal bonding

FAQ:

Q1: What is Hammer Union Seal?

A1: Hammer union seal, produced by SHQN, is a kind of sealing device used for pipeline connection, whose model number is Hammer union seals. It is made in China..

Q2: What is the packaging of Hammer Union Seal?

A2: The packaging of Hammer Union Seal can be customized or standard packing.

Q3: What is the delivery time of Hammer Union Seal?

A3: The delivery time of Hammer Union Seal is about 15 days.

Q4: What is the material of Hammer Union Seal?

A4: Hammer Union Seal is made of high quality rubber compounds.

Q5: Are you manufacture or trading company?

We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
